Chaotic Pendulums
Interactive Exhibit

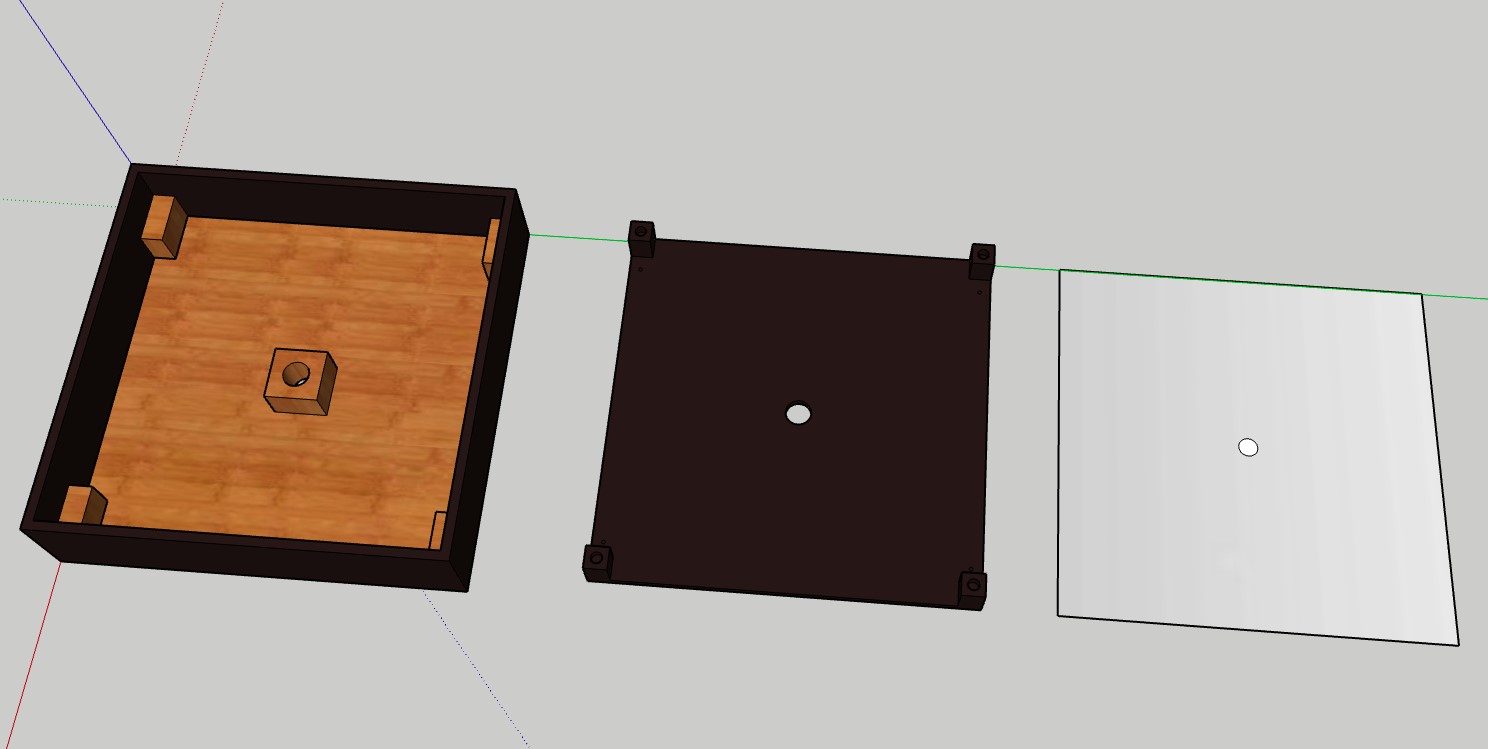

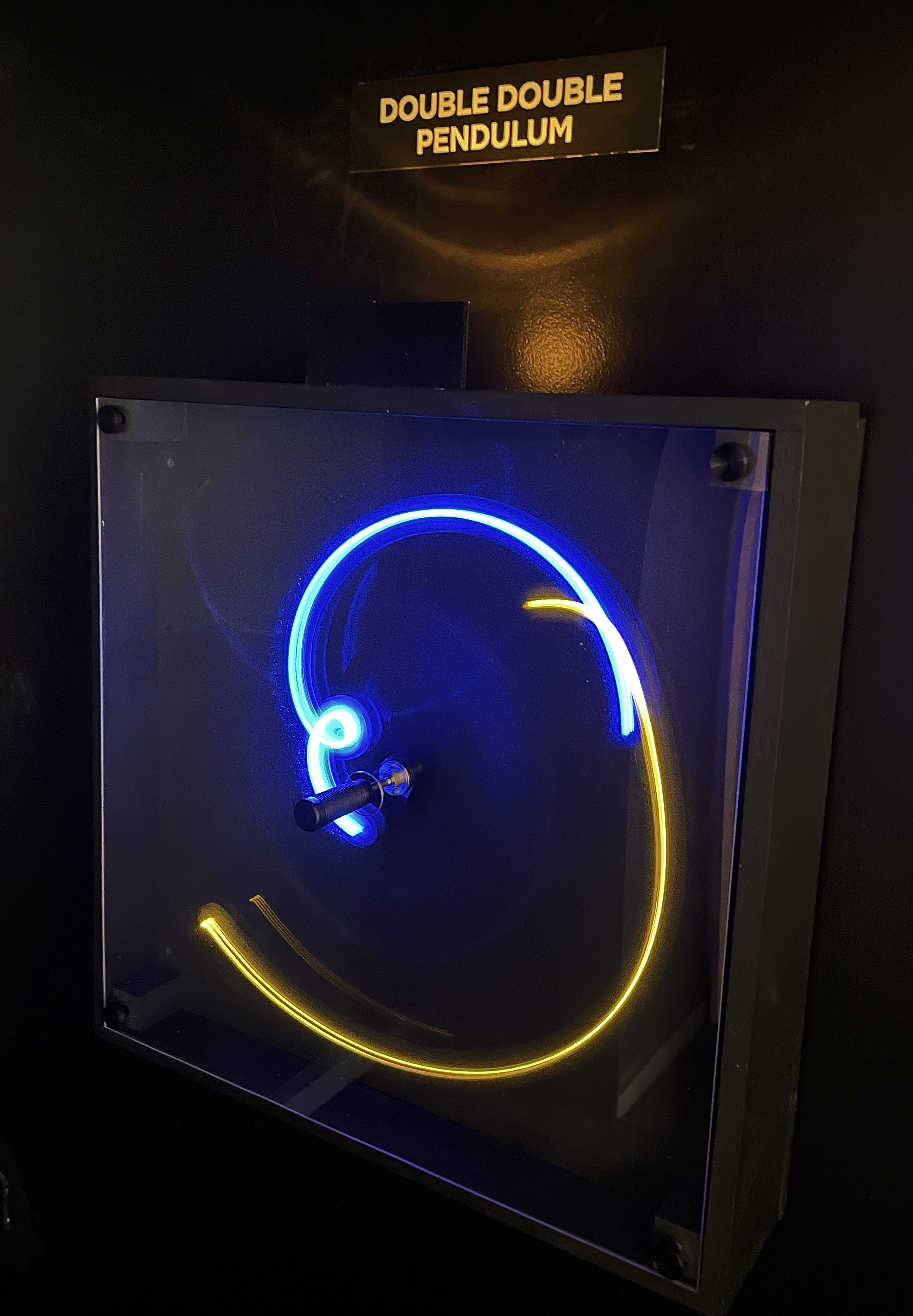

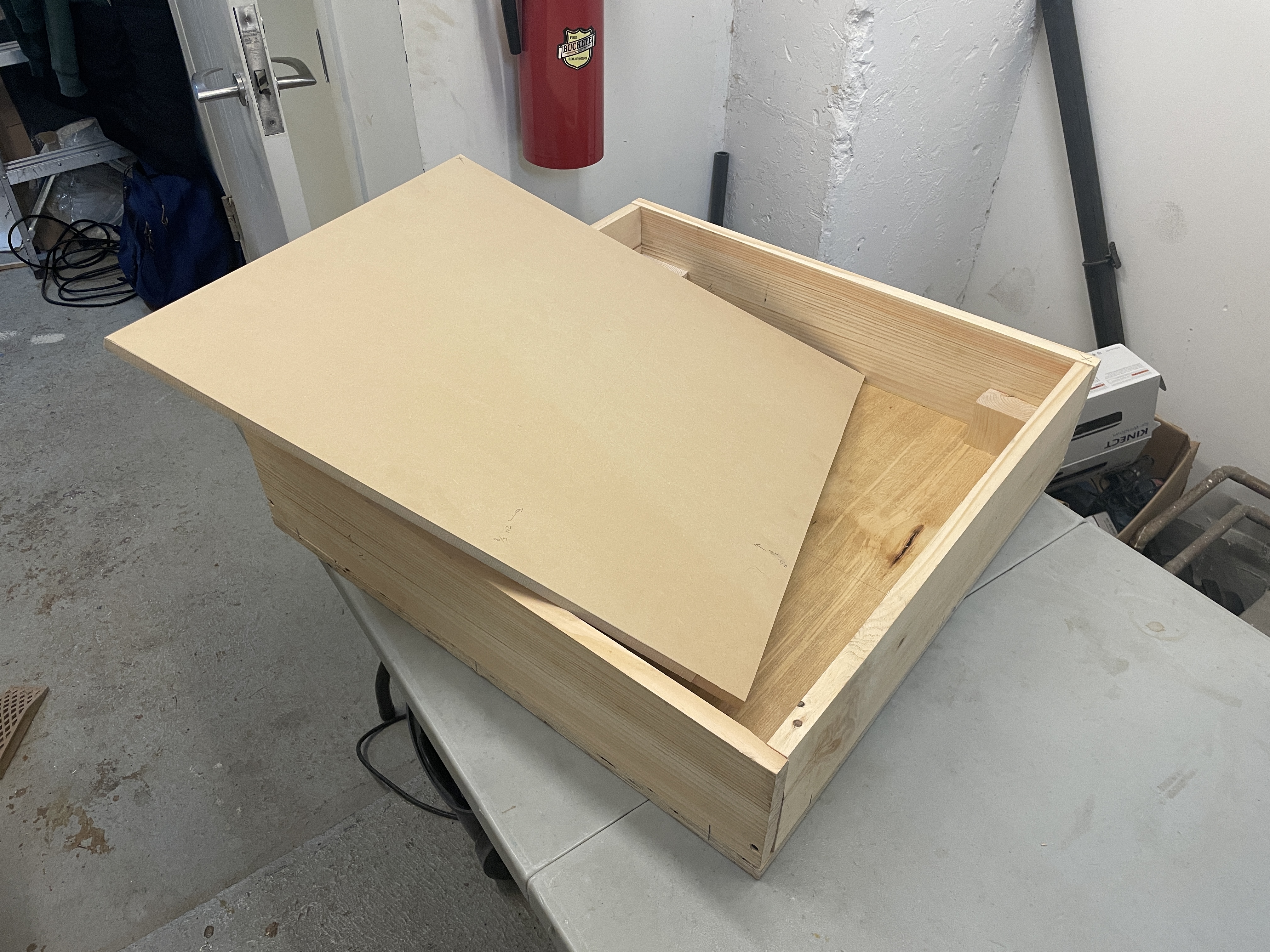

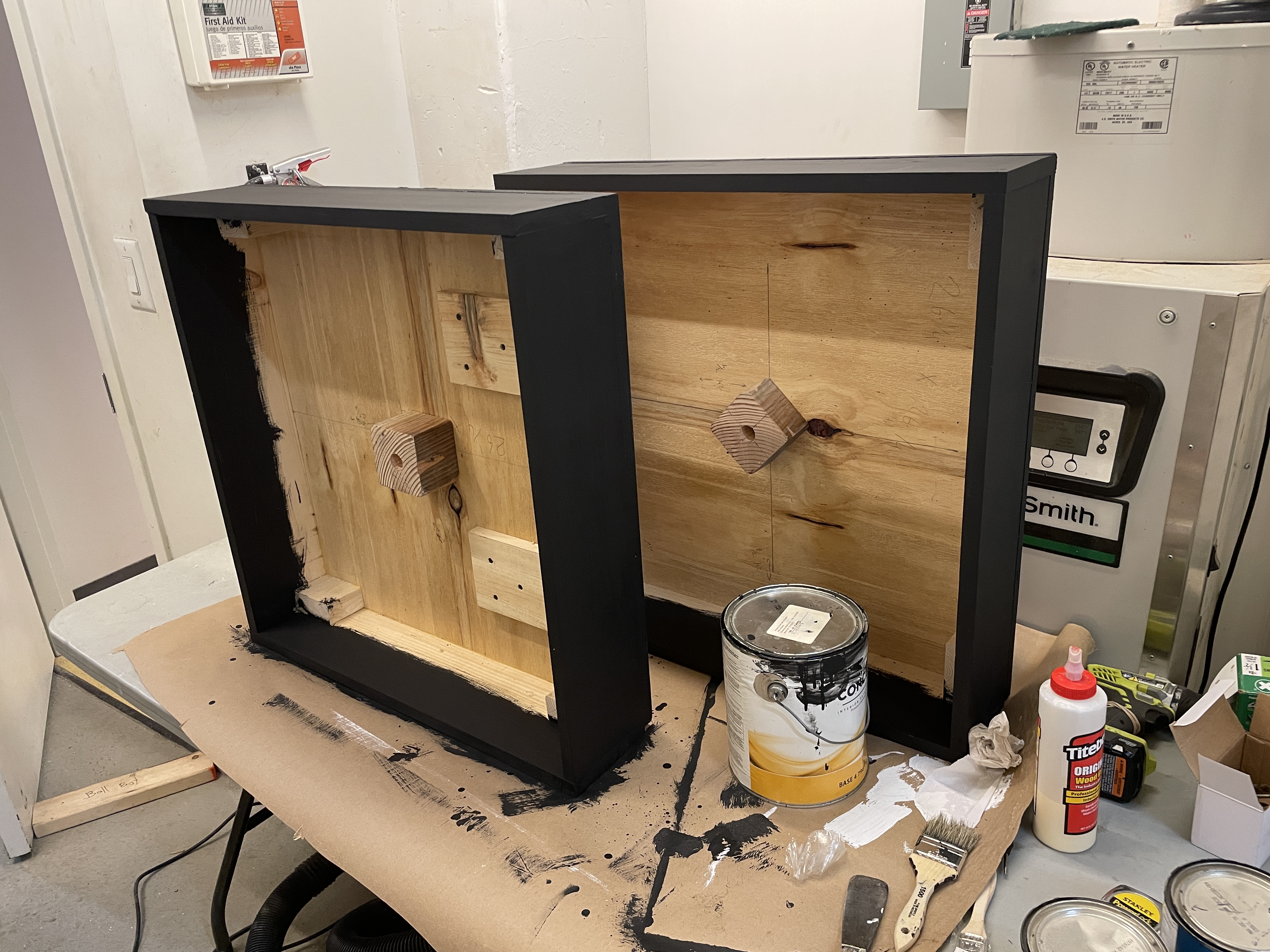

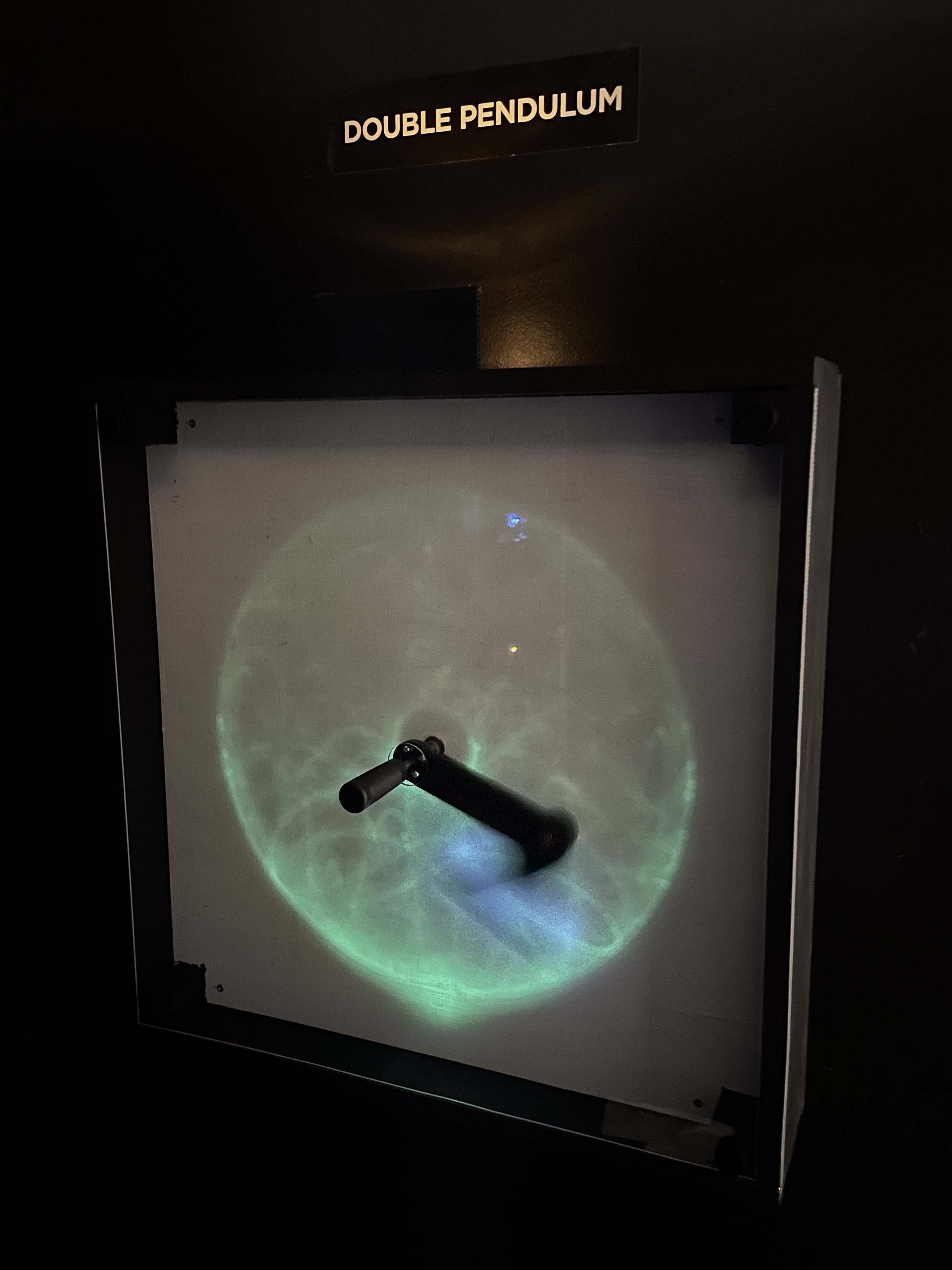

I designed and fabricated multiple variations of a chaotic pendulum to be displayed as part of an exhibit titled “Traces” in the Composite Gallery at the National Museum of Mathematics. I developed vector files, cut them out of acrylic on our laser cutter, and assembled them using precise rotational components. To allow visitors to safely manipulate these pendulums, I also designed and built custom light boxes to safely contain the moving parts.
![](https://freight.cargo.site/t/original/i/e1d6fadfb4c585f63e3db7e5c52b124381b884b4827a578367ba31484c3e67b2/IMG_5421.jpg)
![](https://freight.cargo.site/t/original/i/e933f7df6683916757bc2b2e3441e8f0609d8b589368bf12388a7abbffdb53d0/IMG_5441.jpg)
![](https://freight.cargo.site/t/original/i/ee839d3496208b21099a1ae7f745f3a5e80deb8d2ee92fd9ef0f29ac119498b8/IMG_5419.jpg)
![](https://freight.cargo.site/t/original/i/8194b079fd127f2385e27e967147f77cece0e1c32a9024c3c42a56c7a6986011/IMG_5427.jpg)
![](https://freight.cargo.site/t/original/i/6391e157f4ff28df7243048d7b60c0cc57b43b7883dfa351b9e9cbe69f6d8e98/pendulum2.gif)

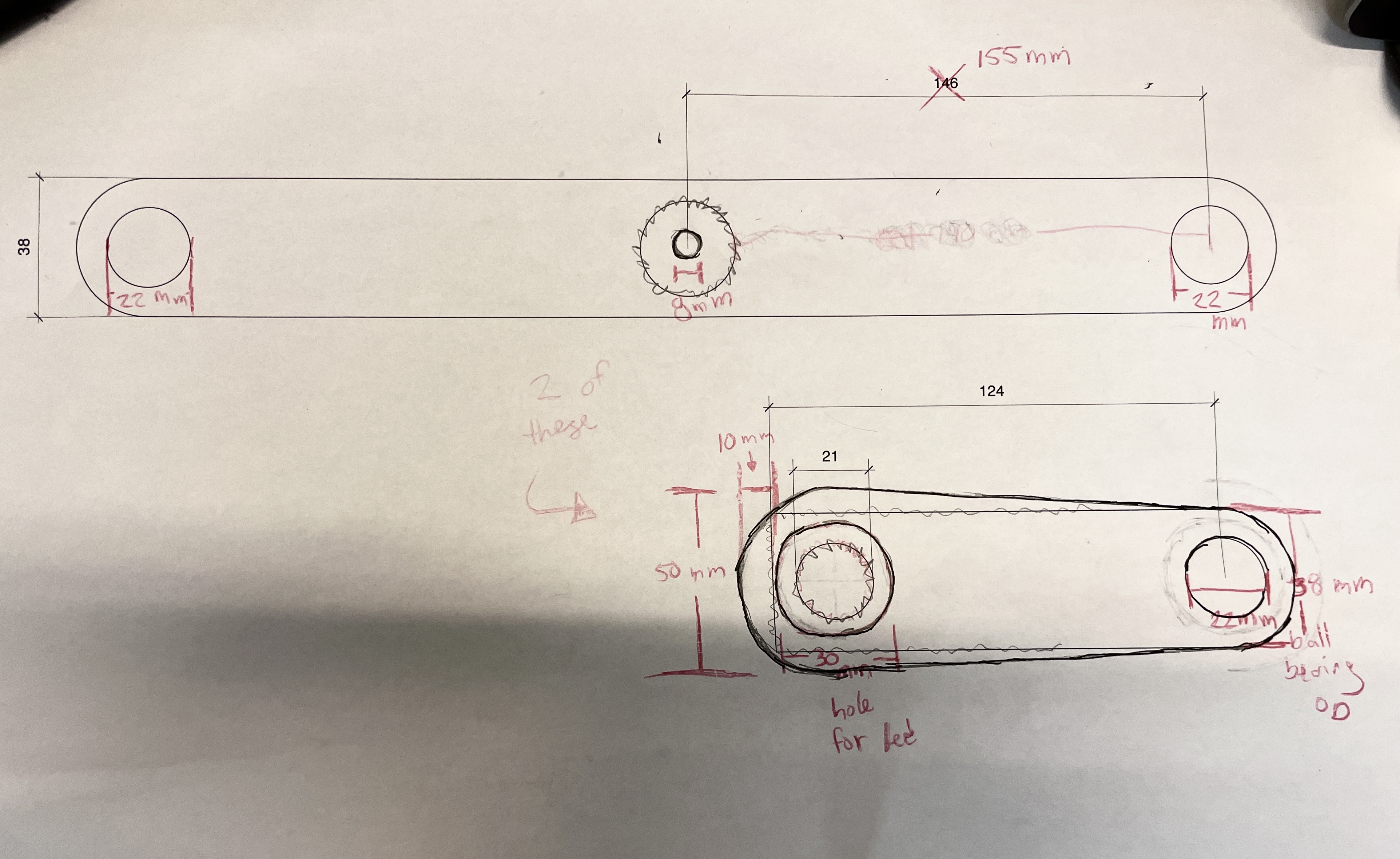

![An early sketch of the first pendulum](https://freight.cargo.site/t/original/i/6d51a1c61e071cabbe7af708fc539a38df670cb8489e1731a5f2d9be760fc5ae/IMG_5077.jpg)
